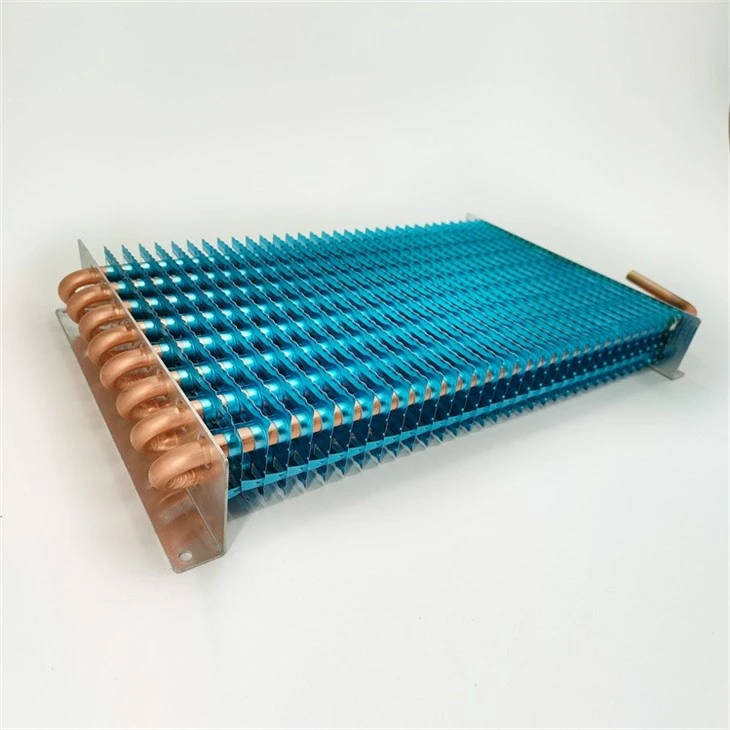

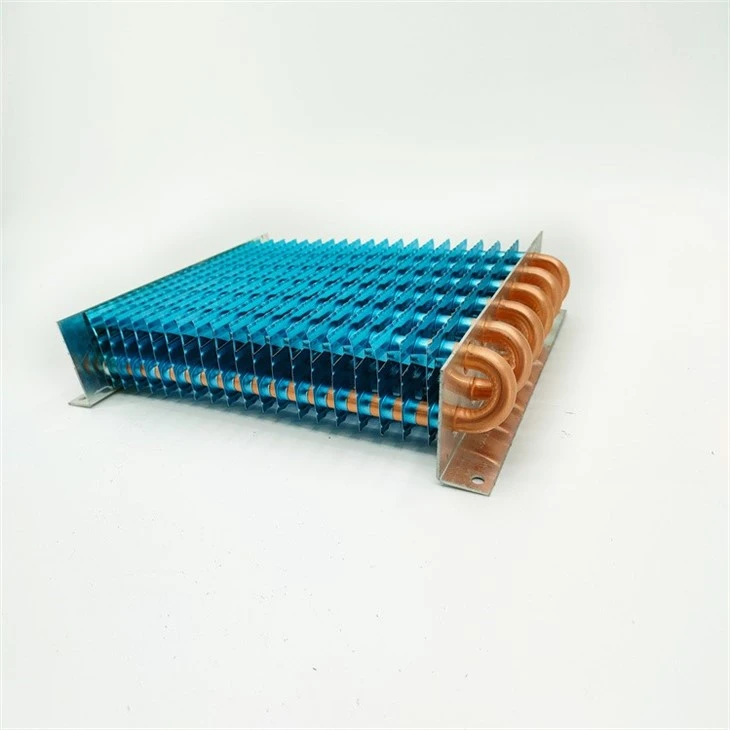

Copper Fin Condenser
The condenser is a component of the refrigeration system and belongs to a type of heat exchanger. It can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast manner. 1. Air cooled condenser can be used in air conditioner, cold room, freezer,...
Lýsing
The condenser is a component of the refrigeration system and belongs to a type of heat exchanger. It can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast manner.
1. Air cooled condenser can be used in air conditioner, cold room, freezer, refrigerator and other area.
2. Fin: flat or corrugated aluminum foils; hydrophilic or bare fin.
3. Tube: copper pipe
4. Φ7mm, φ7.94mm, φ9.52mm ,φ12.7mm of tube O.D. available
5. Customized service is available according to customer's drawings to meet end user's specified requirements.
6. Materials of fin and tube per customer's need, it could be aluminum, copper or stainless steel
7. Leak test: 2.5Mpa water test
8. Producing process: tube bend, press fins, expand tube, welding, leak test, dry, inspect, pack.
Certificate of honor
Product superiority
Factory actual shoot
Service process
Packaging transportation
FAQ
1. What is your delivery time?
20-30 days.
2. What is the payment terms?
30%-50% T/T before production, balance before shipment.
3. What is your warranty?
One year after shipment.
4. When is the quotation valid?
30 days.
5. Can we do our OEM logo?
Yes, we can do OEM logo for you.
Specification of Copper Fin Condenser
| No. | Copper tube | Hole distance | Column distance | Flating height of fin |
| 1 | 5 | 19.05 | 16 | 1.5-5 |
| 2 | 5 | 21 | 18.2 | 1.5-5 |
| 3 | 6 | 25 | 21.65 | 1.4-6 |
| 6.35 | 25 | 21.65 | 1.4-6 | |
| 4 | 7 | 25 | 21.65 | 1.4-6.5 |
| 5 | 7 | 21 | 12.7 | 1.4-3 |
| 6 | 7 | 21 | 18.2 | 1.4-6.5 |
| 7 | 7 | 21.8 | 20 | 1.5-4.5 |
| 8 | 7.94(5/16) | 25 | 21.65 | 1.4-5 |
| 9 | 9.52(3/8) | 25 | 21.65 | 4.0-10 |
| 10 | 9.52(3/8) | 25.4 | 15.88 | 1.4-3 |
| 11 | 9.52(3/8) | 25 | 12.5 | 1.8-5 |
| 9.52(3/8) | 25 | 25 | 1.4-4 | |
| 12 | 9.52(3/8) | 35 | 35 | 5.0-10 |
| 13 | 12(7/16) | 35 | 35 | 6-8.5 |
| 14 | 12.7(1/2) | 31.75 | 27.5 | 6-8.5 |
